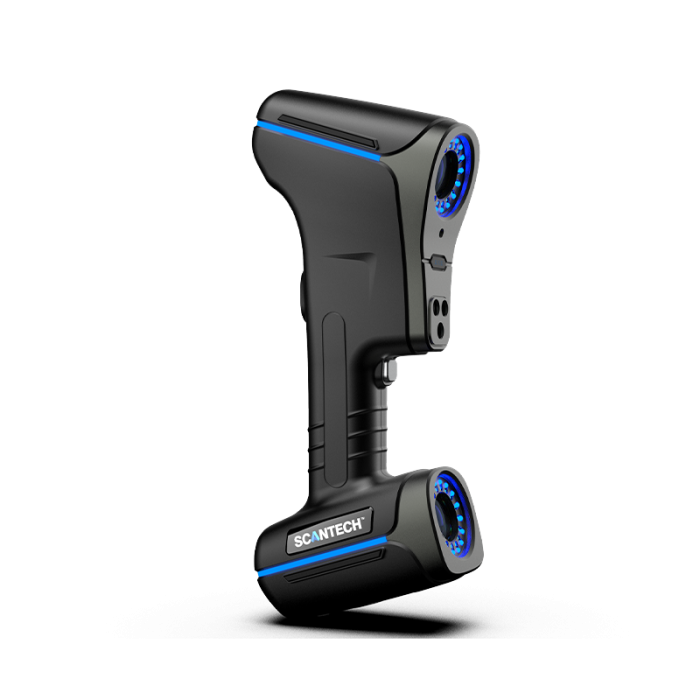

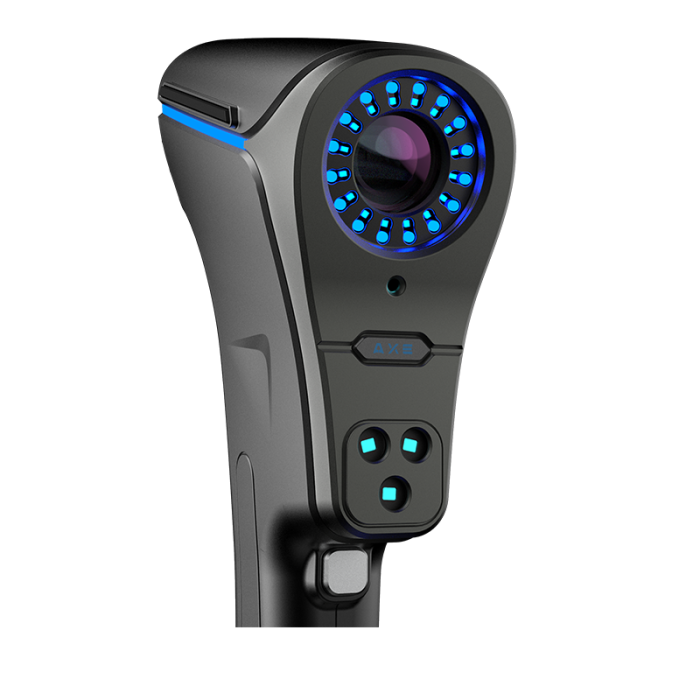

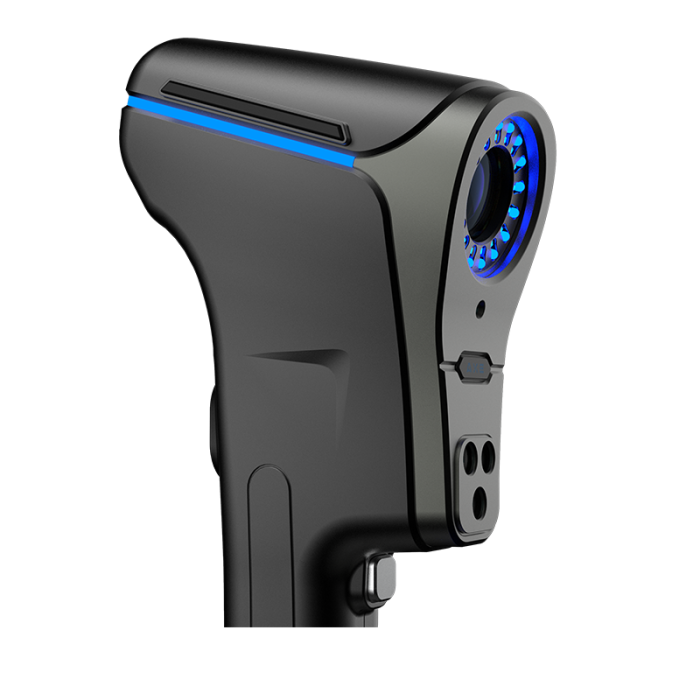

Scantech AXE-B11 Global 3D Scanner
Scantech AXE-B11 Global 3D Scanner
Shipping Assistant
Choose your delivery destination & delivery service
Changing Location
Scantech AXE-B11 Global 3D Scanner Product description
The AXE-B scanner was designed primarily for 3D measuring large-scale objects. Global 3D scanners include an integrated photogrammetry system that produces metrology-grade 3D solutions without the usage of extra equipment. When performing a 3D inspection on a large project, scanning area and volumetric accuracy are unavoidable obstacles. However, this kind of 3D solution benefits from cutting-edge built-in photogrammetry system technology, which enables an ultra-wide scanning area and precise data gathering, increasing the efficiency of high-quality 3D modeling and shortening the 3D digitization process.
General properties
| Manufacturer | Scantech |
|---|---|
| Scanner Series | Scantech AXE-B |
| Made in | China |
| Warranty | 1 year |
| SKU | scantech-axe-b11-global |
Physical properties
| Light source | Laser |
|---|---|
| Light color | Blue |
| Laser class | Class 2 |
| Scanning modes | High speed scanning, Deep holes scanning, Large area scanning |
| Scanning accuracy. | 0.02 mm |
| Scanning resolution. | 0.03 mm |
| Scanning rate. | 1,300,000.00 PPS |
| Scanning distance. | 300.00 mm |
| Depth of field. | 500.00 mm |
| Volumetric accuracy | 0.020 mm + 0.035 mm/m |
| Scanning area | 550 mm × 600 mm (2500 mm × 3000 mm - photogrammetry) |
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk |
| Connectivity | USB |
| Working temperature range | -10 / +40°C |
