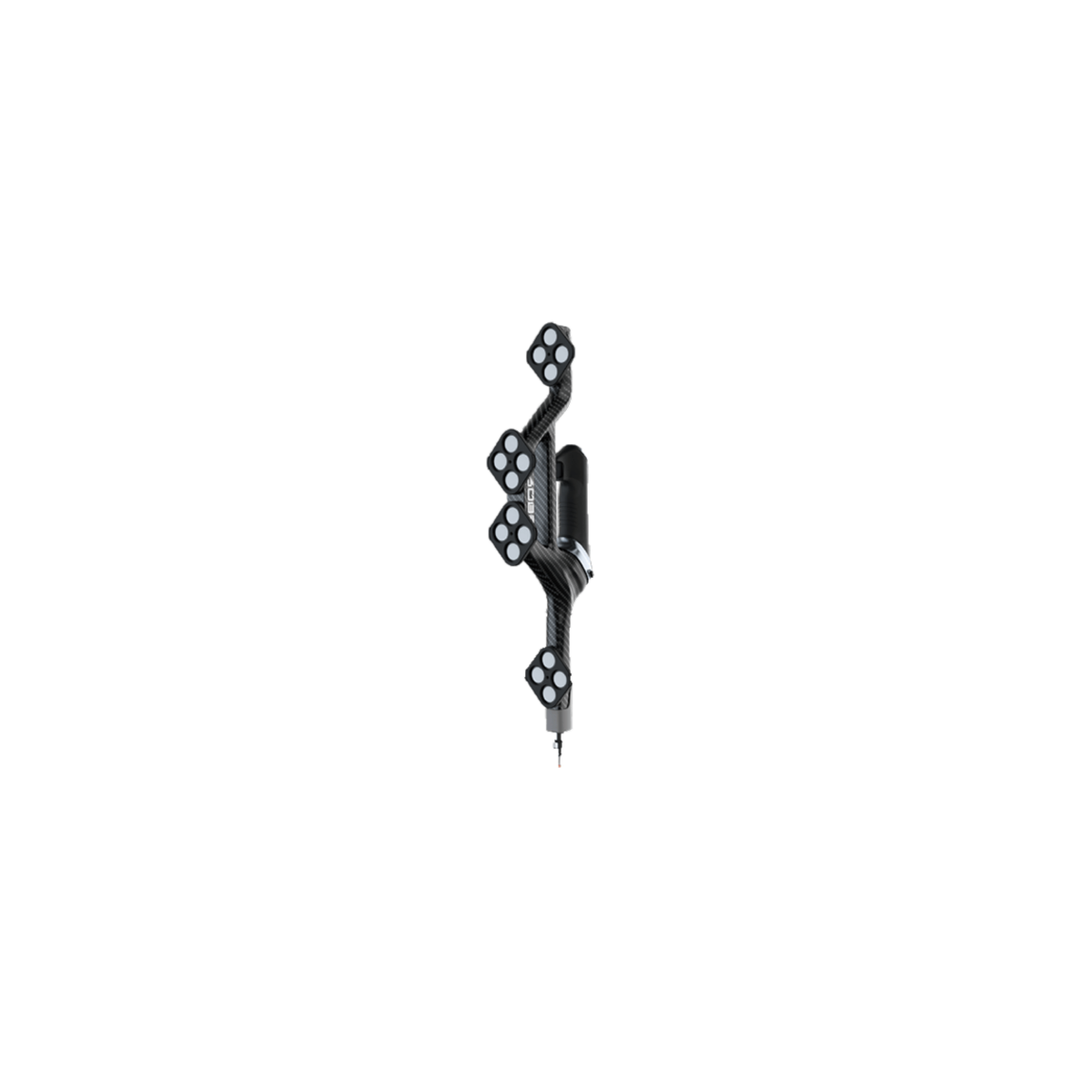

Scantech i-Probe set Product description
Metrology-level measurements are the intended application for i-Probe when paired with the latest optical tracker, i-Tracker. It guarantees high-quality measurements for parts in large measurement volumes, across long distances, and under difficult circumstances since it is incredibly accurate, portable, and user-friendly. With this technology, you may measure in three dimensions with extreme accuracy and flexibility. Numerous shop floor operations, such as fixture adjustment, benchmark marking, and geometric and dimensional inspection of engineering machinery, can be accomplished with it. It has no restrictions on measuring scenarios and can handle both small and large items.
Included in package:
- i-Probe 500 handle
- Calibration module
- Travel case
- Stylus kit
General properties
| Manufacturer | Scantech |
|---|---|
| Scanner Series | Scantech TrackScan |
| Made in | China |
| Warranty | 1 year |
| SKU | scantech-i-probe-set |
Physical properties
| Part size range (recommended) | 100 mm - 12,000 mm |
|---|---|
| Tracking distance. | 10,000.00 mm |
| Volumetric accuracy | 0.049 mm (at 10.4 m³) |
| Working temperature range | 0 / +45°C |
| Working humidity range (non-condensing) | 10 / 90% |
| Length. | 510.00 mm |
| Width. | 145.00 mm |
| Height. | 89.00 mm |
| Weight. | 700.00 g |
