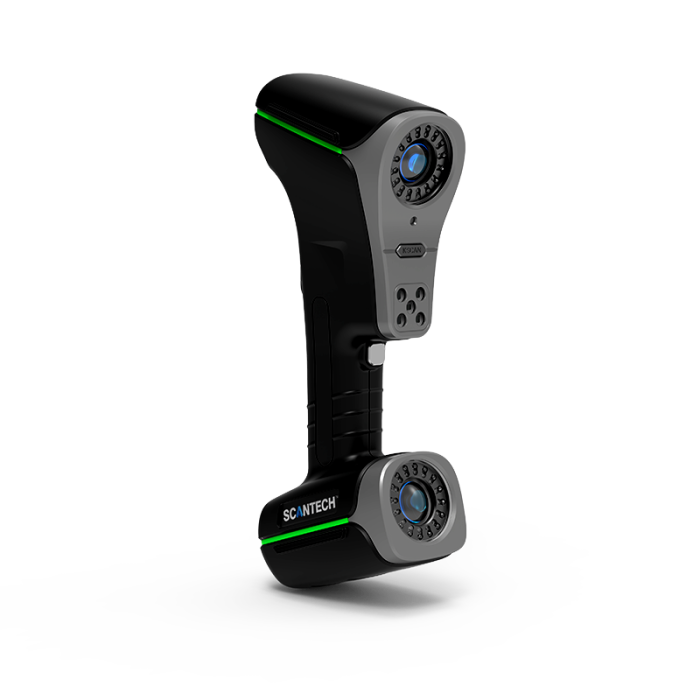

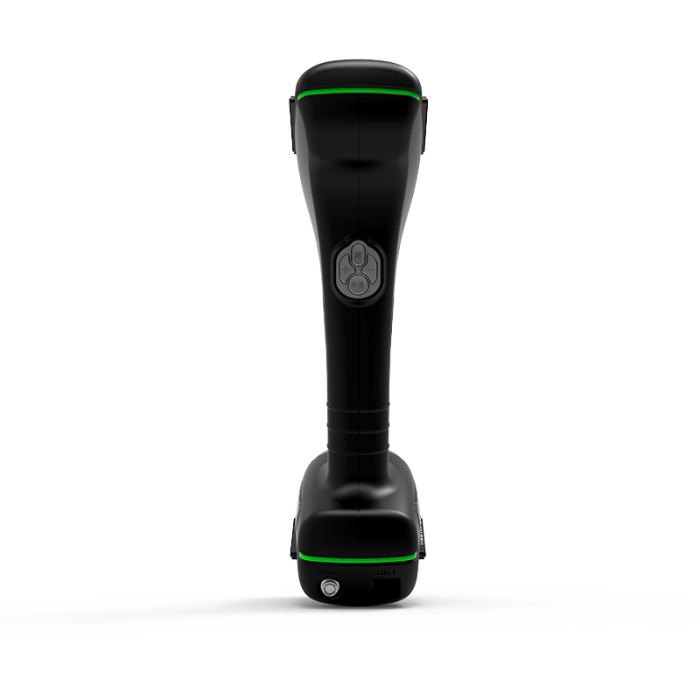

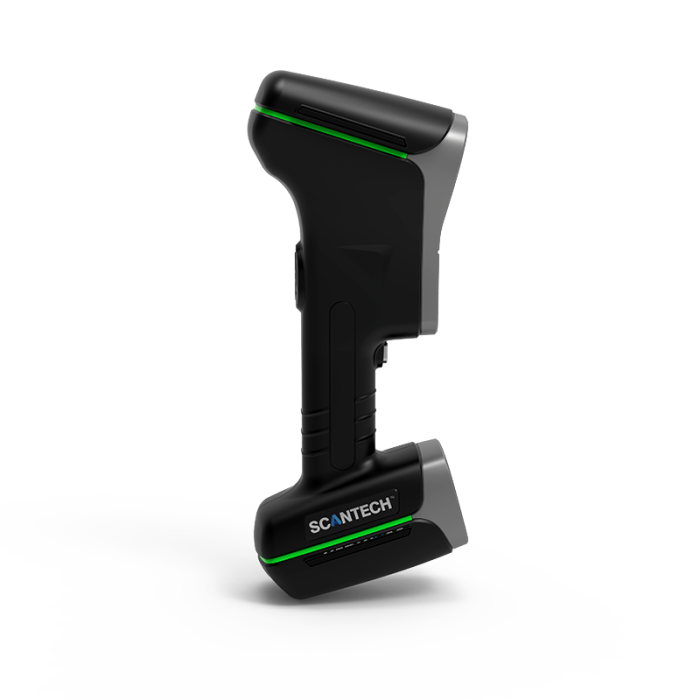

Scantech KSCAN-Magic II 3D Scanner
Scantech KSCAN-Magic II 3D Scanner
Shipping Assistant
Choose your delivery destination & delivery service
Changing Location
Scantech KSCAN-Magic II 3D Scanner Product description
The KSCAN-Magic Upgrade Series is an innovative composite 3D scanner that combines infrared and blue lasers into a single flexible instrument that may be used for a variety of tasks. This composite 3D scanner can operate in five different modes: large-area scanning with parallel infrared lasers, ultra-fast scanning with blue laser crosses, hyperfine scanning with blue parallel lasers, deep-hole scanning with a single blue laser, and an integrated large-area photogrammetry system.
This cutting-edge 3D scanner series employs a multi-spectrum 3D scanning and calibration method that combines high efficacy with unparalleled accuracy. It has a fast scanning speed, high accuracy, excellent detail capture, a broad scanning area, and an extended depth-of-field, which considerably improves 3D measuring operations and reduces product time-to-market.
Included in package:
- Scanner KSCAN-Magic II
- Master plate
- Power adapter
- Power cable
- Power data cable (4 m)
- Carry case
- C-type to USB 3.0 adapter
- Higher reflective targets - Φ12 mm (1000 pcs)
- Higher reflective targets - Φ6 mm (4000 pcs)
- Higher reflective targets - Φ3 mm (1000 pcs)
- Higher reflective code points (168 pcs)
- Dongle
- USB Disk
- 1-year maintenance
- ISO 17025 certificate
General properties
| Manufacturer | Scantech |
|---|---|
| Scanner Series | Scantech KSCAN-Magic |
| Made in | China |
| Warranty | 1 year |
| SKU | scantech-kscan-magicII |
Physical properties
| Light source | Laser |
|---|---|
| Light color | Blue, Infrared |
| Laser class | Class 2 |
| Scanning modes | High speed scanning, Fine detail scanning, Deep holes scanning, Large area scanning |
| Scanning accuracy. | 0.02 mm |
| Scanning resolution. | 0.01 mm |
| Scanning rate. | 4,150,000.00 PPS |
| Scanning distance. | 300.00 mm |
| Depth of field. | 925.00 mm |
| Volumetric accuracy | 0.015 mm + 0.030 mm/m |
| Scanning area | 1440 mm × 860 mm (3760 mm × 3150 mm - photogrammetry) |
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk |
| Connectivity | USB |
| Working temperature range | -10 / +40°C |
