Scantech T-Probe set for TrackScan-P550/P542
Scantech T-Probe set for TrackScan-P550/P542
Shipping Assistant
Choose your delivery destination & delivery service
Changing Location
Scantech T-Probe set for TrackScan-P550/P542 Product description

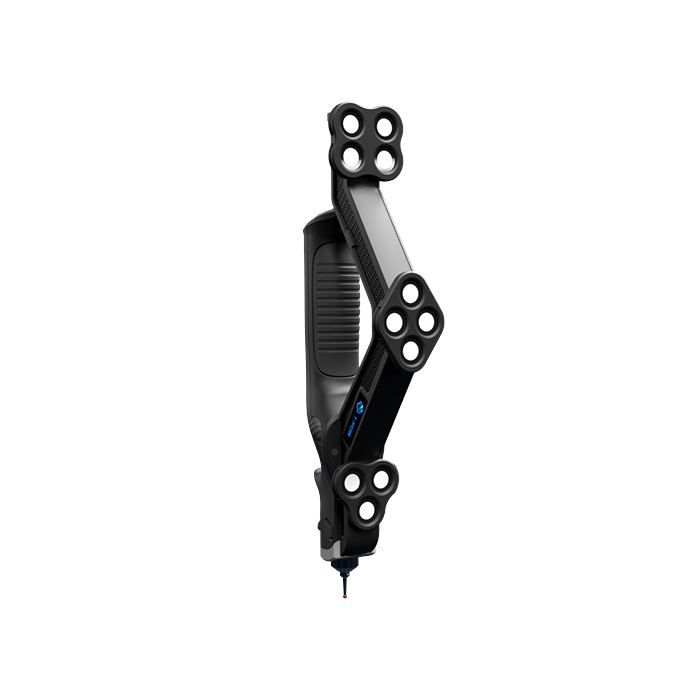

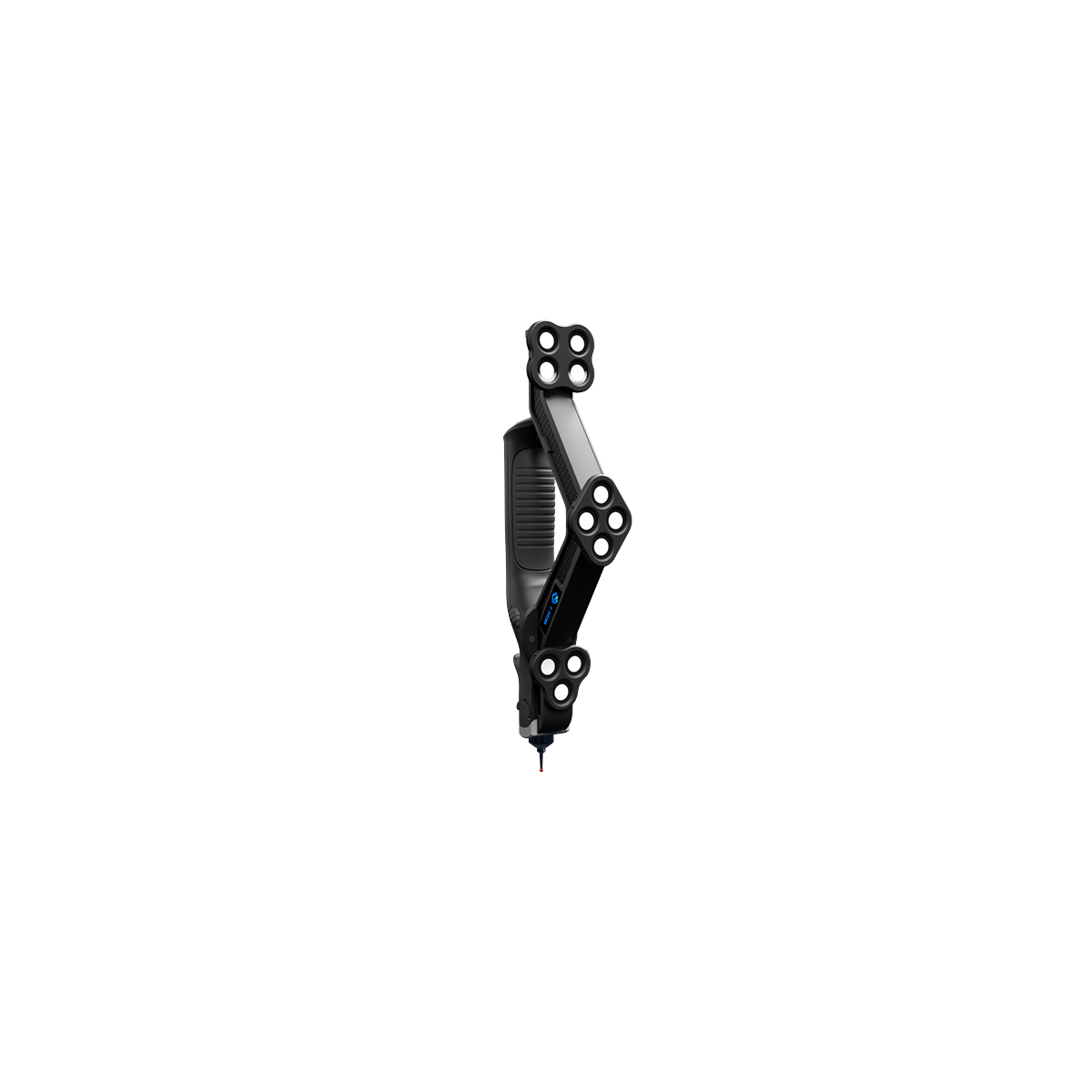

T-Probe is a portable probing system. When paired with i-Tracker, it can be utilized remotely, free of mechanical constraints and cables, for measuring dimensions of features such as reference holes and hidden areas. It can be widely used to measure fixtures, stamping parts, and mark actual machining allowances. T-Probe can automatically align the coordinates of scanned data and probing data, allowing users to probe the part immediately after 3D scanning. It allows complete freedom of movement while measuring large objects with complex details.
Included in package:
- Probe handle
- Calibration cone
- Travel case
- Stylus kit
Compatible 3D scanners:
- TrackScan-P550
- TrackScan-P542
General properties
| Manufacturer | Scantech |
|---|---|
| Scanner Series | Scantech TrackScan |
| Made in | China |
| Warranty | 1 year |
| SKU | scantech-t-probe-trackscan-p550-p542 |
Physical properties
| Scanning accuracy. | 0.03 mm |
|---|---|
| Part size range (recommended) | 200 mm – 6,000 mm |
| Scanning rate. | 60.00 PPS |
| Volumetric accuracy | 0.049 mm (at 10.4 m³) |
| Working temperature range | -10 / +40°C |
| Working humidity range (non-condensing) | 10 / 90% |
| Length. | 345.00 mm |
| Width. | 55.00 mm |
| Height. | 121.00 mm |
| Weight. | 450.00 g |
