Scantech TrackScan-P550 3D System

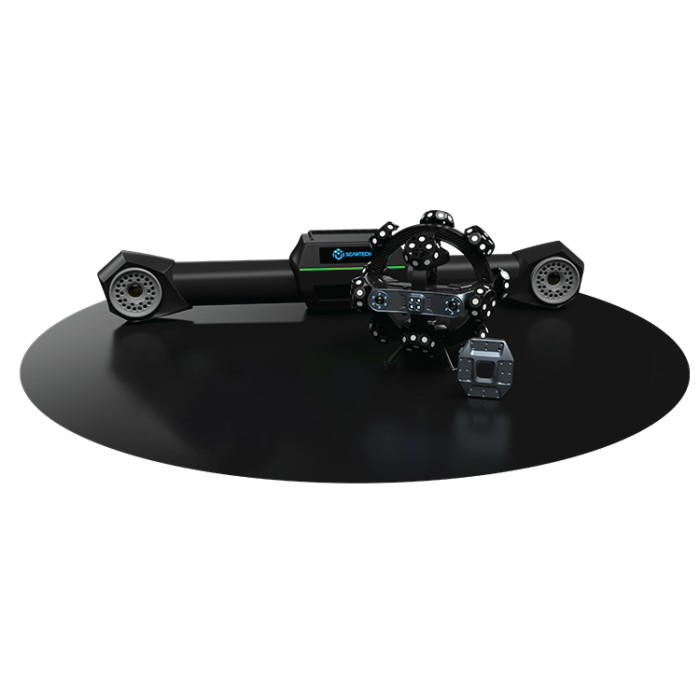

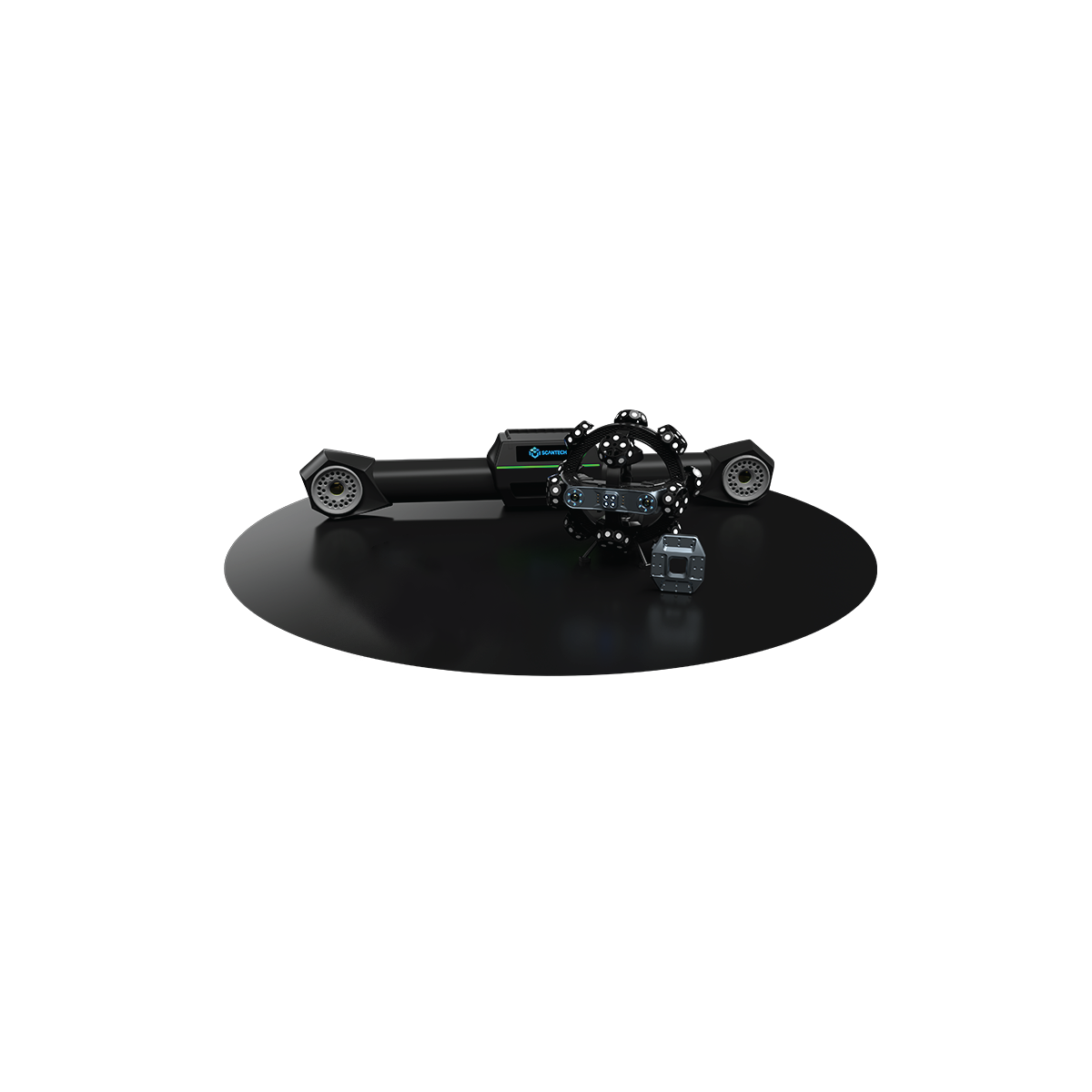

TrackScan-P is equipped with smart optical tracking measurement and high-resolution cameras, allowing it to precisely measure objects without the use of reference markers. This optical 3D measuring system, which consists of a portable 3D scanner and the optical tracker i-Tracker, is perfect for scanning large-scale objects. It is used in a variety of industries, including aircraft, automobile, rail transportation, and manufacturing, for quality control, product development, and reverse engineering.

Expandable applications can be made possible by combining it with other modules. It can be used in conjunction with an auxiliary light module to inspect circles, grooves, and drilled holes on stamping parts. It can perform accurate contact measurements for edges, circles, and grooves using a tracking T-Probe.

Included in package:

• i-Tracker set:
  • i-Tracker
  • Calibration bar
  • Tripod
  • Power adapter
  • Power data cable (8 m)
  • Carry case
  • Data cable USB 3.0
  • Power-HUB extension module
  • Cylinder magnetic target - Φ12 mm (24 pcs)
  • Higher reflective targets - Φ12 mm (1000 pcs)
  • Higher reflective targets - Φ6 mm (1000 pcs)
  • Power cable
• i-Scanner P550 set:
  • i-Scanner P550
  • Master plate
  • Power data calbe (8 m)
  • Carry case
  • Dongle
  • USB disk
  • Higher reflective targets - Φ12 mm (360 pcs)
  • 1-year maintenance
  • ISO 17025 certificate
