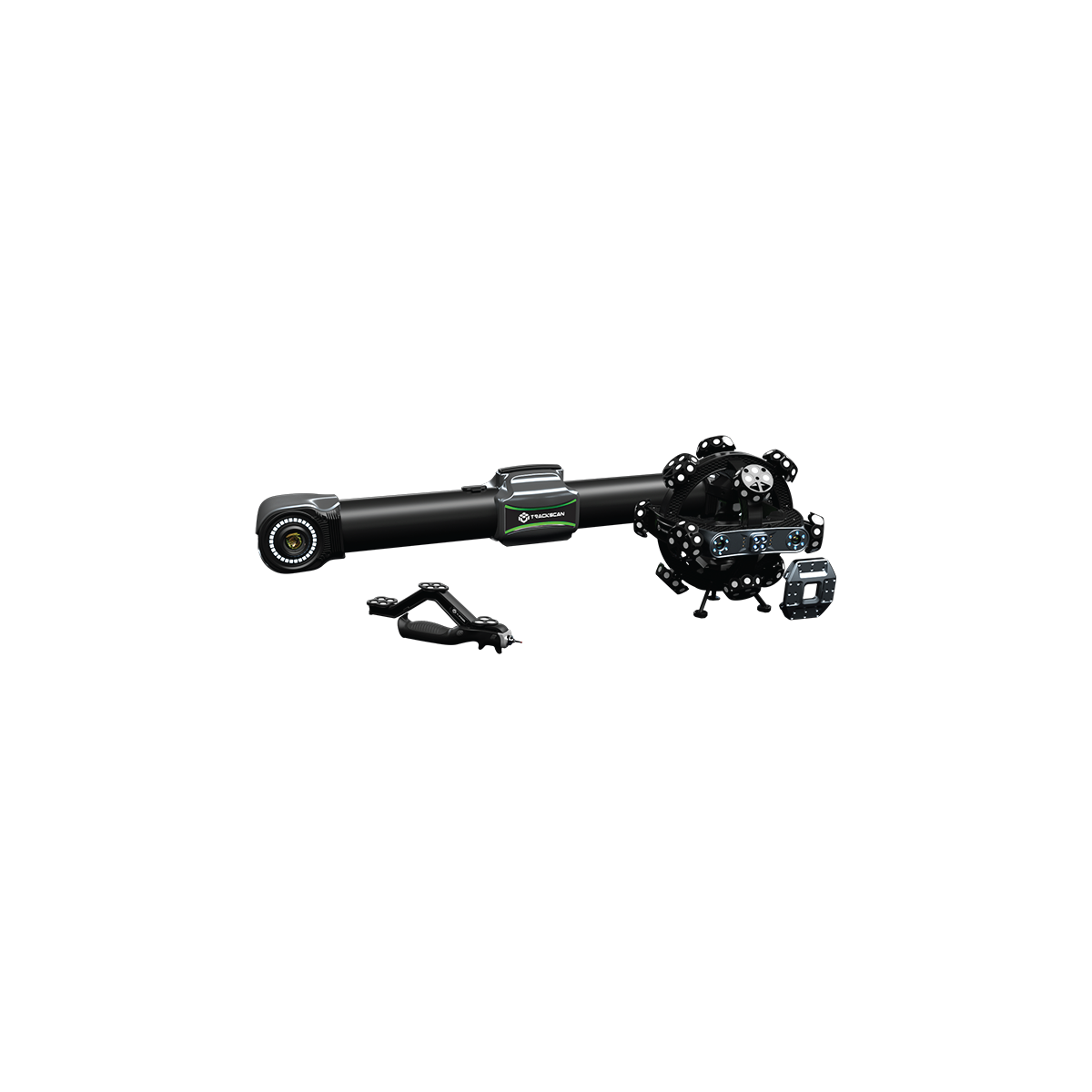

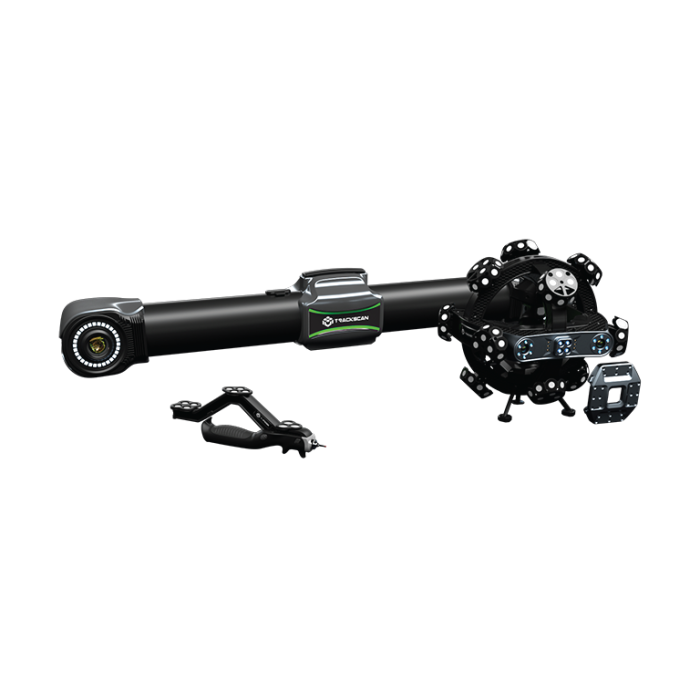

Scantech TrackScan-Sharp 49 3D System with i-Probe 500 set

TrackScan-Sharp, which includes a portable 3D scanner i-Scanner and an optical i-Tracker, is Scantech's optical 3D measurement system for large-scale components. It takes optical measurement to the next level, offering a tracking distance of up to 6 meters, a volumetric range of 49 m3, and volumetric accuracy of up to 0.049 mm (10.4 m).

With its on-board i-Tracker processor for Edge Computing, 25-megapixel industrial cameras, and cutting-edge technology, the TrackScan-Sharp is ideal for measuring big components or several parts at once without the need to constantly relocate trackers.

It supports wired and wireless data transfer for a variety of industrial applications, making scanning even easier. It can also inspect holes and slots with an additional light module. TrackScan-Sharp is suitable for precise and consistent measurements that aid in product development, quality control, and other applications.

Expandable applications can be made possible by combining it with other modules. It can perform accurate contact measurements for edges, circles, and grooves using a tracking i-Probe.

Included in package:

• i-Tracker S49 set:
  • i-Tracker S49
  • Calibration bar
  • Tripod
  • Power adapter
  • Power data cable(12 m)
  • Carry case
  • Data cable USB 3.0
  • Power-HUB extension module
  • Cylinder magnetic target - Φ12 mm (24 pcs)
  • Higher reflective targets - Φ12 mm (1000 pcs)

  • Higher reflective targets - Φ6 mm (1000 pcs)
  • Power cable
• i-Scanner S49 set:
  • i-Scanner S49
  • Master plate
  • Power data calbe (8 m)
  • Carry case
  • Dongle
  • USB disk
  • Higher reflective targets - Φ12 mm (360 pcs)
  • 1-year maintenance
  • ISO 17025 certificate
• i-Probe 500 set:
  • i-Probe 500 handle

  • Calibration module

  • Travel case

  • Stylus kit
