Scantech TrackScan-Sharp 49 3D System

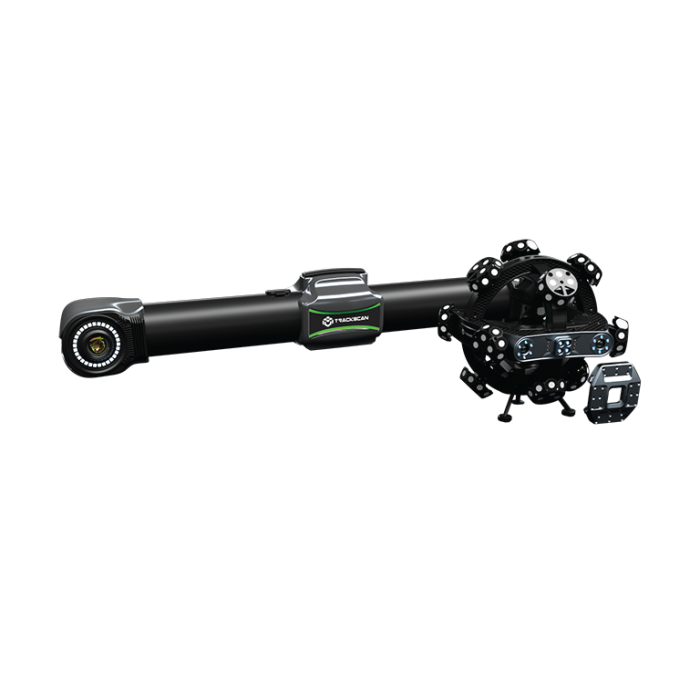

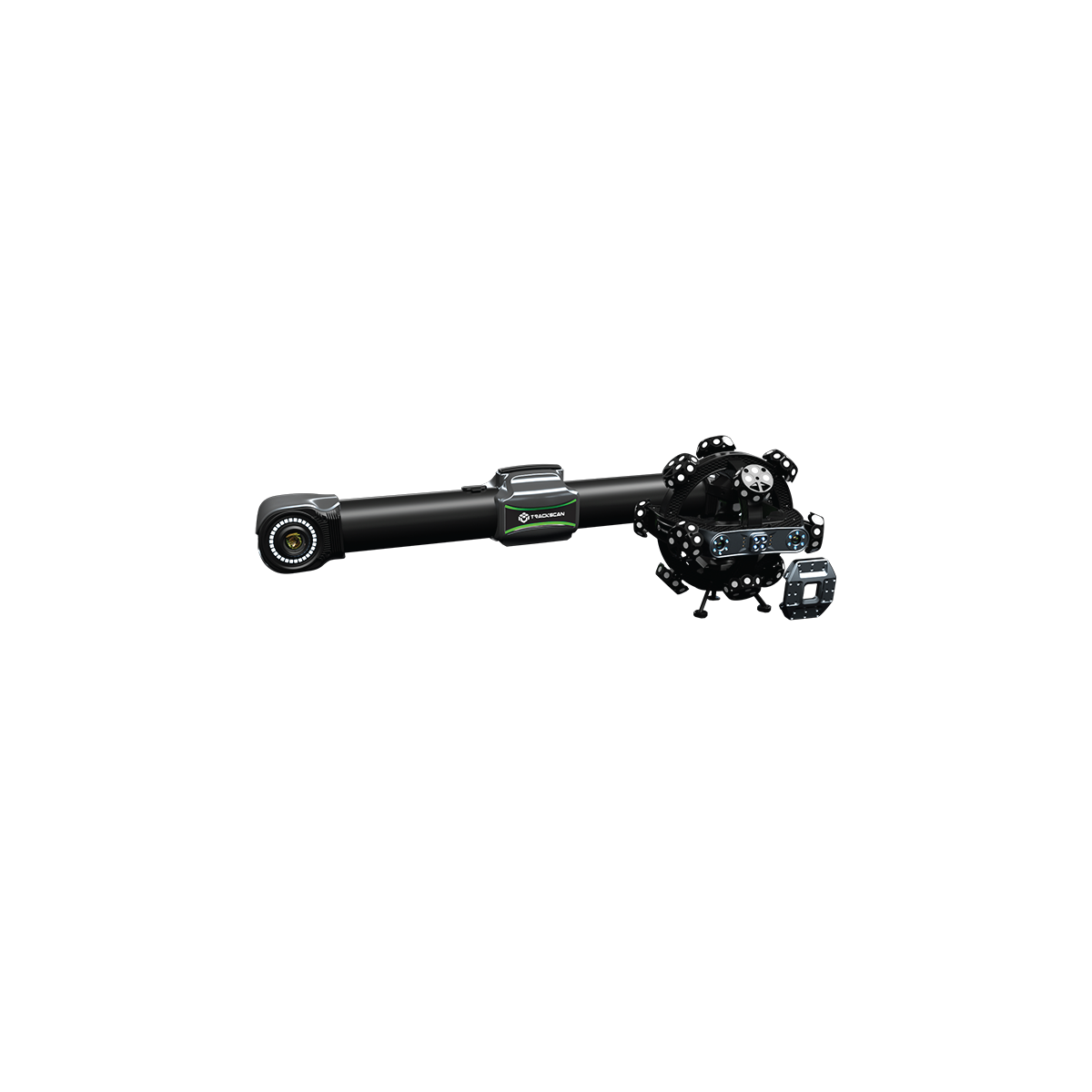

TrackScan-Sharp, which includes a portable 3D scanner i-Scanner and an optical i-Tracker, is Scantech's optical 3D measurement system for large-scale components. It takes optical measurement to the next level, offering a tracking distance of up to 6 meters, a volumetric range of 49 m3, and volumetric accuracy of up to 0.049 mm (10.4 m).

With its on-board i-Tracker processor for Edge Computing, 25-megapixel industrial cameras, and cutting-edge technology, the TrackScan-Sharp is ideal for measuring big components or several parts at once without the need to constantly relocate trackers.

It supports wired and wireless data transfer for a variety of industrial applications, making scanning even easier. It can also inspect holes and slots with an additional light module. TrackScan-Sharp is suitable for precise and consistent measurements that aid in product development, quality control, and other applications.

Included in package:

• i-Tracker S49 set:
  • i-Tracker S49
  • Calibration bar
  • Tripod
  • Power adapter
  • Power data cable(12 m)
  • Carry case
  • Data cable USB 3.0
  • Power-HUB extension module
  • Cylinder magnetic target - Φ12 mm (24 pcs)
  • Higher reflective targets - Φ12 mm (1000 pcs)

  • Higher reflective targets - Φ6 mm (1000 pcs)
  • Power cable
• i-Scanner S49 set:
  • i-Scanner S49
  • Master plate
  • Power data calbe (8 m)
  • Carry case
  • Dongle
  • USB disk
  • Higher reflective targets - Φ12 mm (360 pcs)
  • 1-year maintenance
  • ISO 17025 certificate
